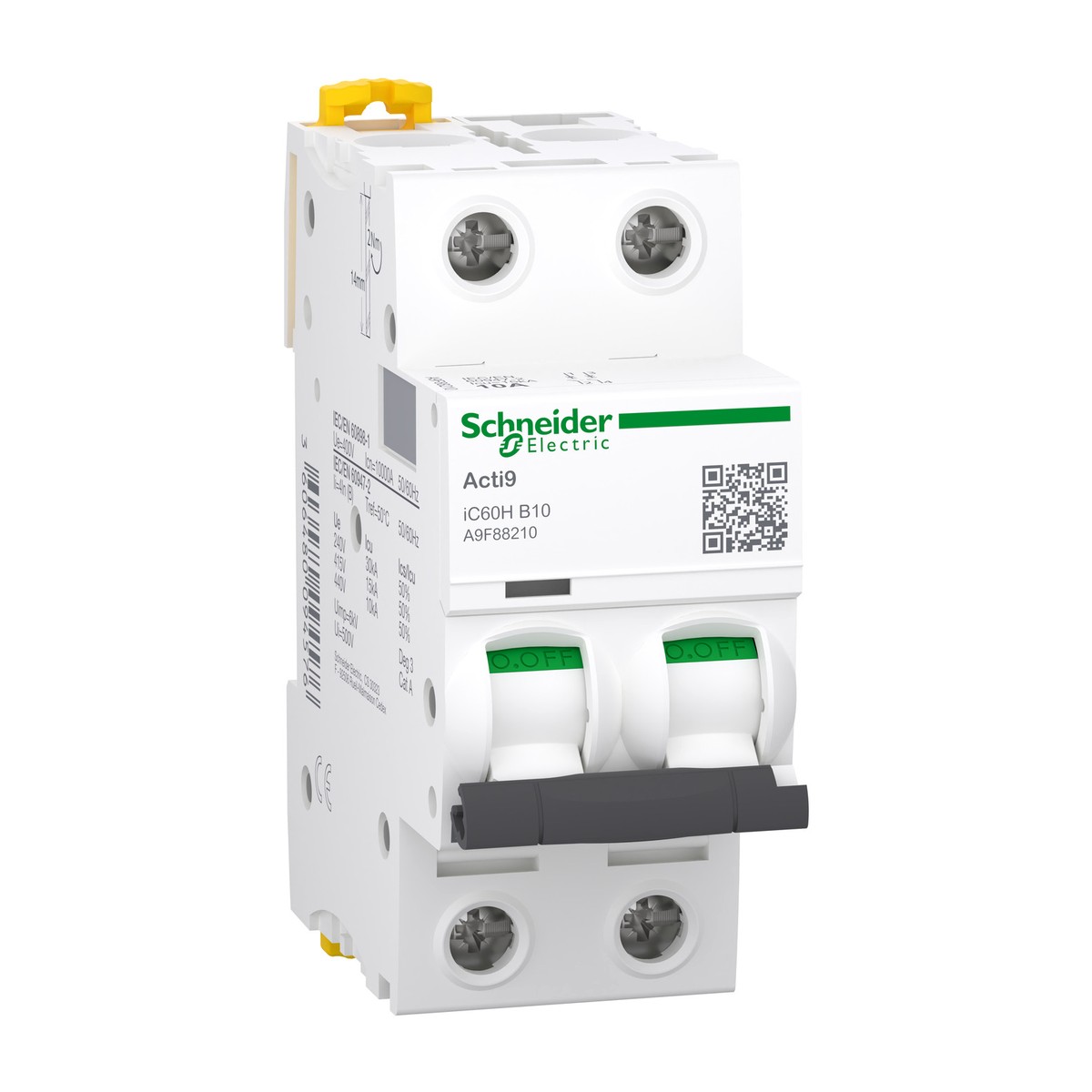

Schneider Electric A9F88210 Miniature Circuit Breaker
Schneider Electric A9F88210 Miniature Circuit Breaker (MCB) 2P 10A B-Curve 10kA/15kA. The Schneider Electric A9F88210 is a high-performance Acti9 iC60H Miniature Circuit Breaker (MCB), expertly designed for robust protection in final distribution circuits. This 2-pole, 10A B-curve MCB offers reliable thermal-magnetic tripping, safeguarding electrical installations against overcurrents and short circuits. It boasts impressive breaking capacities, including 10000A at 400V AC (conforming to EN/IEC 60898-1) and 15kA at 380-415V AC (conforming to EN/IEC 60947-2), making it suitable for demanding environments. The A9F88210 supports both AC and DC networks, with operational voltages up to 440V AC and 125V DC. Its DIN-rail mounting and IP20 protection (IP40 in a modular enclosure) ensure straightforward installation and durability. Ideal for industrial applications across Egypt and the Gulf region, such as cement plants, oil & gas facilities, water treatment, and food & beverage processing, this Schneider Electric MCB provides essential circuit protection.
Details
- Brand: Schneider Electric
- Part number: A9F88210
- Series: Acti9 iC60H
- Category: Miniature Circuit Breaker
Category
Acti9 iC60 Miniature Circuit Breakers
Related Schneider Electric parts
- Schneider Electric A9F84170 — Disjuntor Acti9 IC60H 1P, 0.5A, Curva C, 70kA em 220/240VCA (60947-2)
- Schneider Electric A9F84610 — Disjuntor Acti9 IC60H 1P+N, 10A, Curva C, 15kA em 220/240VCA (60947-2)
- Schneider Electric A9F85103 — Disjuntor Acti9 IC60H 1P, 3A, Curva D, 70kA em 220/240VCA (60947-2)
- Schneider Electric A9F85301 — Disjuntor Acti9 IC60H 3P, 1A, Curva D, 70kA em 220/240VCA (60947-2)
- Acti9 iC60H A9F84316 3-pole 16 A C-curve miniature circuit breaker, 10 kA
- Schneider Electric A9F84303 — Miniature Circuit Breaker, 3P, 3A, C-curve, 70kA
- Schneider Electric A9F88216 — Miniature Circuit Breaker, Acti9 iC60H, 2P, 16A, B curve
- Schneider Electric A9F88220 — Miniature circuit breaker, Acti9 iC60H, 2P, 20A, B Curve
- Schneider Electric A9F88306 — Miniature circuit breaker Acti9 iC60H 3P 6A B-curve
- Schneider Electric A9F88310 — Acti9 iC60H Miniature Circuit Breaker 3P 10A B Curve
- Schneider Electric A9F88316 — Acti9 iC60H MCB, 3P, 16A, B curve
- Schneider Electric A9F88325 — Acti9 iC60H 3P 25A B-curve Miniature Circuit Breaker
Specifications
- Depth
- 78.5 Mm
- Width
- 36 Mm
- Height
- 85 Mm
- Standards
- EN/IEC 60947-2, EN/IEC 60898-1
- Curve code
- B
- Network type
- AC, DC
- Mounting support
- 35 mm DIN rail
- Network frequency
- 50/60 Hz
- Poles description
- 2P
- Tightening torque
- 2 N.M top or bottom
- [In] rated current
- 10 A
- Connections - terminals
- Single terminal (top or bottom), 1…25 mm² rigid, 1…16 mm² flexible/with ferrule
- IP degree of protection
- IP20 (IEC 60529), IP40 in modular enclosure
- Magnetic tripping limit
- 4 x In +/- 20 %
- Manufacturer part number
- A9F88210
- Suitability for isolation
- Yes
- [Ue] rated operational voltage AC
- 12...133 V, 220...240 V, 380...415 V, 440 V AC 50/60 Hz
- [Ue] rated operational voltage DC
- <= 125 V DC
- Breaking capacity (IEC/EN 60898-1)
- 10000 A at 400 V AC 50/60 Hz
- Breaking capacity (IEC/EN 60947-2)
- 15 KA at 380-415 V AC 50/60 Hz
- Ambient air temperature for operation
- -35…70 °C
