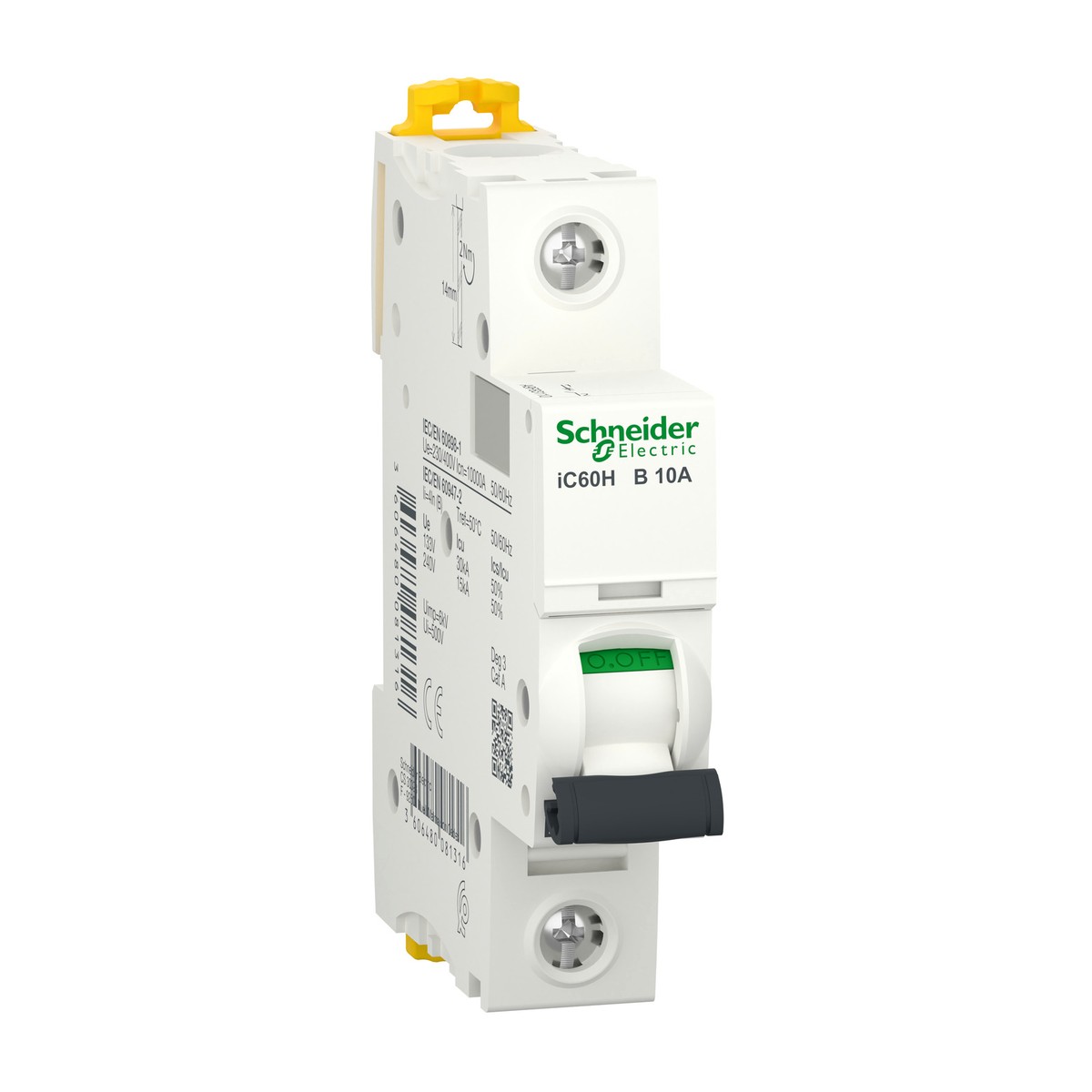

Schneider Electric A9F83110 Miniature circuit breaker, Acti9 iC60H, 1P, 10A, B curve. The Schneider Electric A9F83110 Acti9 iC60H Miniature Circuit Breaker (MCB) is a robust and reliable solution designed for comprehensive circuit protection in final distribution applications. This 1-pole (1P) device features a 10A rated current and a B-curve thermal-magnetic trip unit, ensuring effective overload and short-circuit protection. Compatible with both AC and DC networks, it supports operational voltages up to 240V AC and offers significant breaking capacities, including 10000A (IEC/EN 60898-1) and 15kA (IEC/EN 60947-2) at 220-240V AC. Engineered for 35mm DIN rail mounting, the A9F83110 provides suitability for isolation, an IP20 degree of protection, and reliable performance in ambient temperatures from -35 to 70 °C. Its durability is evidenced by 20,000 mechanical and 10,000 electrical cycles. This versatile MCB is ideal for diverse applications across Egypt and the Gulf region, including critical infrastructure in oil and gas, water treatment, cement production, food and beverage industries, textiles, and general building services. For comprehensive overcurrent protection in your electrical systems, request a quote for the Schneider Electric A9F83110 today.
Details
- Brand: Schneider Electric
- Part number: A9F83110
- Series: Acti9
- Category: Miniature Circuit Breaker
Related Schneider Electric parts
- Schneider Electric A9F83116 — iC60H Miniature Circuit Breaker 1P 16A B-curve
- Schneider Electric A9F83140 — Miniature Circuit Breaker Acti9 iC60H 1P 40A B curve
- Schneider Electric A9F83206 — Miniature Circuit Breaker Acti9 iC60H 2P 6A B-Curve
- Schneider Electric A9F83216 — Miniature circuit breaker (MCB) Acti9 iC60H 2P 16A B curve
- Schneider Electric A9F83220 — Miniature Circuit Breaker Acti9 iC60H 2P 20A B-curve
- Schneider Electric A9F83240 — Miniature circuit breaker MCB iC60H 2P 40A B-curve
- Schneider Electric A9F83263 — Miniature Circuit Breaker iC60H 2P 63A B-Curve
- Schneider Electric A9F83306 — Miniature Circuit Breaker MCB Acti9 iC60H 3P 6A B-curve
- Schneider Electric A9F83310 — Acti9 iC60H Miniature Circuit Breaker 3P 10A B-Curve
- Schneider Electric A9F83320 — Acti9 iC60H Miniature circuit breaker 3P 20A B-curve
- Schneider Electric A9F83340 — Acti9 iC60H Miniature Circuit Breaker 3P 40A B Curve
- Schneider Electric A9F83350 — iC60H Miniature Circuit Breaker 3P 50A B-curve
Specifications
- Curve code
- B
- Net weight
- 0.215 Kg
- Network type
- DC, AC
- Mounting support
- 35 mm DIN rail
- Poles description
- 1P
- [In] rated current
- 10 A
- Overvoltage category
- IV
- Trip unit technology
- Thermal-magnetic
- Electrical durability
- 10000 Cycles
- Mechanical durability
- 20000 Cycles
- Dimensions (H x W x D)
- 85 mm x 18 mm x 78.5 mm
- Connections - terminals
- Single terminal (top or bottom) , for 1 cable(s) , 1…25 mm², rigid, copper; Single terminal (top or bottom) , for 1 cable(s) , 1…16 mm², flexible, copper; Single terminal (top or bottom) , for 1 cable(s) , 1…16 mm², flexible with ferrule, copper; Single terminal (top or bottom) , for 1.0 cable(s) , flexible, copper or aluminium, with ring terminal a
- IP degree of protection
- IP20 conforming to IEC 60529
- Magnetic tripping limit
- 4 x In +/- 20 %
- Manufacturer part number
- A9F83110
- Suitability for isolation
- Yes conforming to EN/IEC 60947-2, Yes conforming to EN/IEC 60898-1
- [Ue] rated operational voltage
- 12...60 V AC 50/60 Hz, 100...133 V AC 50/60 Hz, 220...240 V AC 50/60 Hz, 12...60 V DC, 60...72 V DC
- Breaking capacity (IEC/EN 60898-1)
- 10000 A Icn at 230 V AC 50/60 Hz
- Breaking capacity (IEC/EN 60947-2)
- 15 KA Icu at 220...240 V AC 50/60 Hz
- Ambient air temperature for operation
- -35…70 °C
