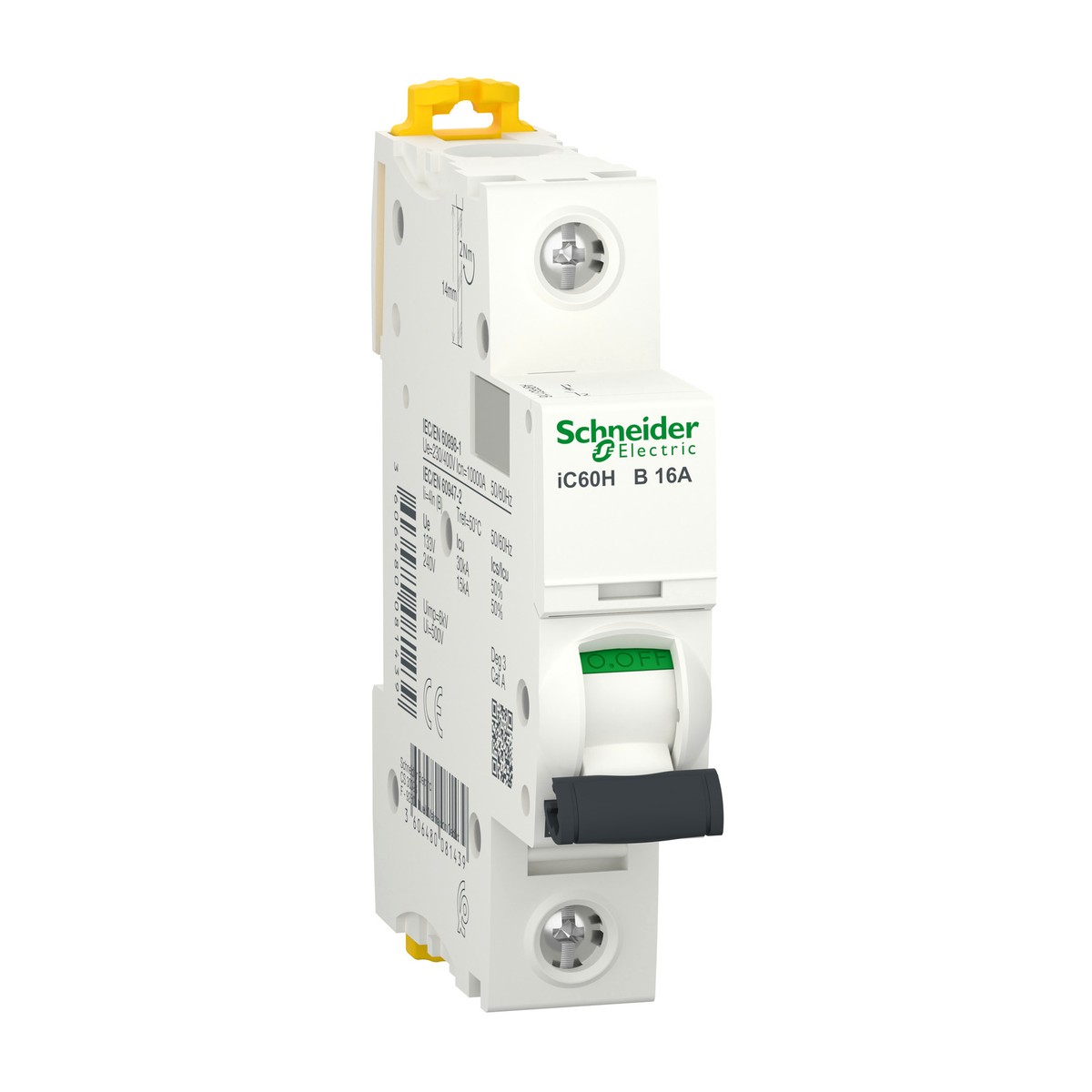

Schneider Electric A9F83116 iC60H Miniature Circuit Breaker 1P 16A B-curve. The Schneider Electric A9F83116 is a high-performance Acti9 iC60H Miniature Circuit Breaker (MCB), engineered for reliable protection of final distribution circuits. This 1-pole, 16A MCB features a B-curve thermal-magnetic trip unit, ensuring precise overload and short-circuit protection for both AC and DC networks. It boasts impressive breaking capacities, including 10000A according to IEC/EN 60898-1 at 230 V AC, and 15kA according to IEC/EN 60947-2 at 220-240 V AC, making it suitable for demanding applications. The A9F83116 also supports DC operational voltages up to 72 V DC with breaking capacities up to 20 KA. Designed for ease of installation, it features a clip-on 35mm DIN rail mounting support and accepts a wide range of copper cable sizes (1-25 mm² rigid, 1-16 mm² flexible). With an IP20 rating (IP40 in modular enclosure) and an operational temperature range of -35 to 70 °C, this Schneider Electric MCB is a dependable choice for critical electrical installations. It is ideal for safeguarding systems in the harsh conditions of Egypt and the Gulf, including applications in commercial buildings, water treatment facilities, oil and gas auxiliary systems, and general industrial infrastructure. To enhance the safety and longevity of your electrical systems, request a quote for the Schneider Electric A9F83116 today.
Details
- Brand: Schneider Electric
- Part number: A9F83116
- Series: Acti9
- Category: Miniature Circuit Breaker
Related Schneider Electric parts
- Schneider Electric A9F83140 — Miniature Circuit Breaker Acti9 iC60H 1P 40A B curve
- Schneider Electric A9F83206 — Miniature Circuit Breaker Acti9 iC60H 2P 6A B-Curve
- Schneider Electric A9F83216 — Miniature circuit breaker (MCB) Acti9 iC60H 2P 16A B curve
- Schneider Electric A9F83220 — Miniature Circuit Breaker Acti9 iC60H 2P 20A B-curve
- Schneider Electric A9F83240 — Miniature circuit breaker MCB iC60H 2P 40A B-curve
- Schneider Electric A9F83263 — Miniature Circuit Breaker iC60H 2P 63A B-Curve
- Schneider Electric A9F83306 — Miniature Circuit Breaker MCB Acti9 iC60H 3P 6A B-curve
- Schneider Electric A9F83310 — Acti9 iC60H Miniature Circuit Breaker 3P 10A B-Curve
- Schneider Electric A9F83320 — Acti9 iC60H Miniature circuit breaker 3P 20A B-curve
- Schneider Electric A9F83340 — Acti9 iC60H Miniature Circuit Breaker 3P 40A B Curve
- Schneider Electric A9F83350 — iC60H Miniature Circuit Breaker 3P 50A B-curve
- Schneider Electric A9F83416 — Acti9 iC60H Miniature Circuit Breaker 4P 16A B-Curve 10kA/15kA
Specifications
- Curve code
- B
- Net weight
- 0.215 Kg
- Network type
- AC, DC
- Mounting support
- 35 mm DIN rail
- Device short name
- iC60H
- Network frequency
- 50/60 Hz
- Poles description
- 1P
- [In] rated current
- 16 A
- Trip unit technology
- Thermal-magnetic
- Connections - terminals
- Single terminal (top or bottom) for 1 cable(s) , 1…25 mm² rigid, 1…16 mm² flexible copper/aluminium
- IP degree of protection
- IP20 conforming to IEC 60529, IP40 in modular enclosure (Insulation class II) conforming to IEC 60529
- Manufacturer part number
- A9F83116
- Number of protected poles
- 1
- Suitability for isolation
- Yes conforming to EN/IEC 60947-2, Yes conforming to EN/IEC 60898-1
- [Ue] rated operational voltage
- 12...60 V AC 50/60 Hz, 100...133 V AC 50/60 Hz, 220...240 V AC 50/60 Hz, 12...60 V DC, 60...72 V DC
- Breaking capacity IEC/EN 60898-1
- 10000 A Icn at 230 V AC 50/60 Hz
- Breaking capacity IEC/EN 60947-2
- 15 KA Icu at 220...240 V AC 50/60 Hz
- DC Breaking capacity IEC/EN 60947-2
- 20 KA Icu at 12...60 V DC, 15 KA Icu at 60...72 V DC
- Ambient air temperature for operation
- -35…70 °C
