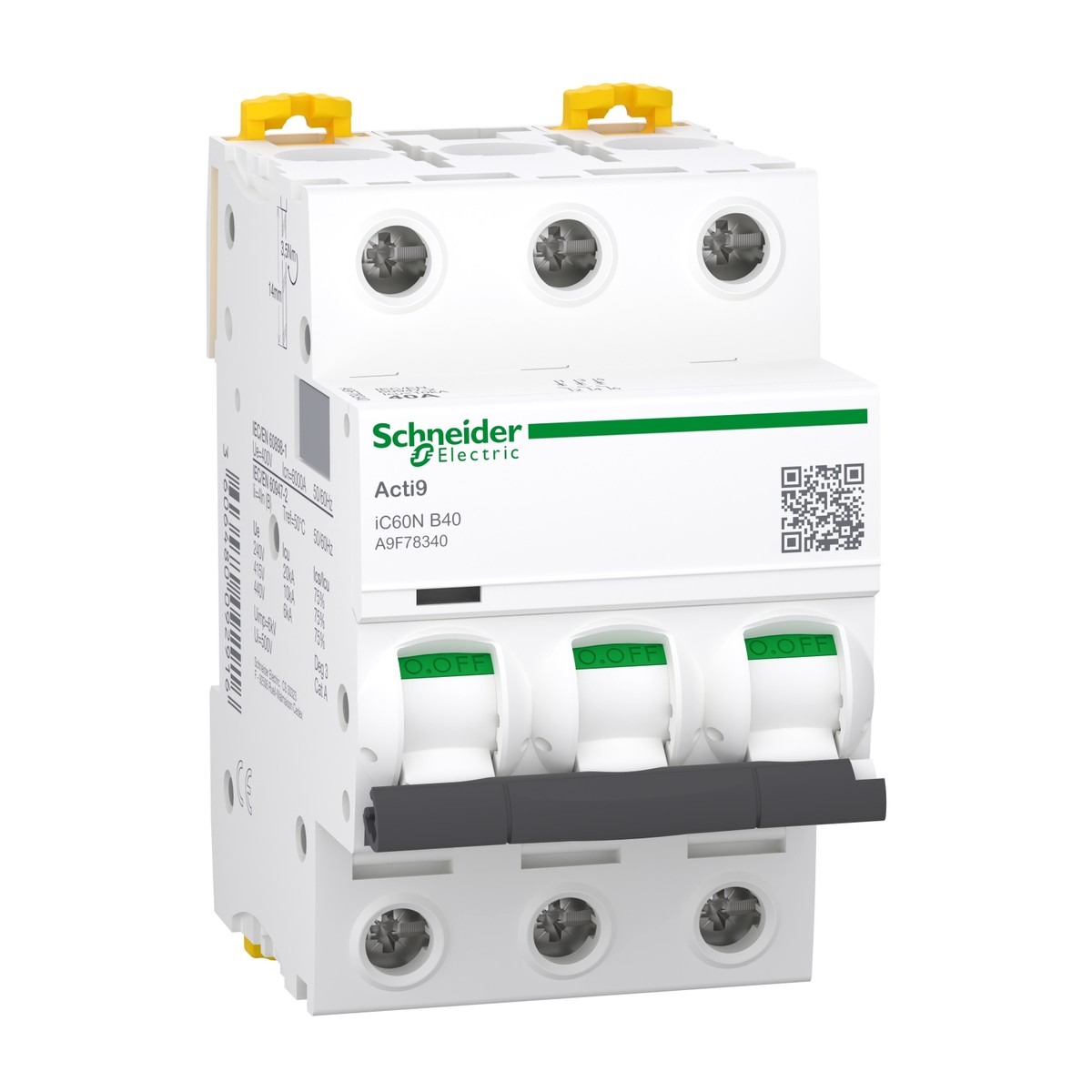

Schneider Electric A9F78340 MCB, Acti9 iC60N, 3P, 40A, B-curve, 6kA/10kA. The Schneider Electric A9F78340 is a robust Acti9 iC60N Miniature Circuit Breaker (MCB) engineered for reliable electrical protection in final distribution circuits. This 3-pole, 40A device features a B-curve thermal-magnetic trip unit, providing essential overcurrent and short-circuit protection, along with an isolation function for enhanced safety. It is compliant with both IEC/EN 60898-1 (6000 A at 400 V AC) and IEC/EN 60947-2 (10 kA at 380-415 V AC) standards, ensuring high performance. Designed for global use, the A9F78340 supports a wide operational voltage range, including 220-240 V AC and 380-415 V AC at 50/60 Hz, making it ideal for the power infrastructure in Egypt and the Gulf region. Its DIN rail mounting simplifies installation in various settings. This MCB is widely used in commercial buildings, industrial facilities like water treatment plants, food and beverage processing, and general building services.
Details
- Brand: Schneider Electric
- Part number: A9F78340
- Series: Acti9
- Category: Miniature Circuit Breaker
Related Schneider Electric parts
- Schneider Electric A9F78406 — Miniature circuit breaker, Acti9 iC60N, 4P, 6A, B curve
- Schneider Electric A9F78410 — Acti9 iC60N MCB, 4P, 10A, B curve
- Schneider Electric A9F78420 — IC60N Miniature Circuit Breaker 4P 20A B-Curve
- Schneider Electric A9F78440 — Acti9 iC60N Miniature Circuit Breaker 4P 40A B-curve
- Schneider Electric A9F78450 — Acti9 iC60N Miniature Circuit Breaker 4P 50A B-curve
- Schneider Electric A9F78463 — Miniature Circuit Breaker (MCB) Acti9 iC60N 4P 63A B-curve
- Schneider Electric A9F79116 — Miniature Circuit Breaker Acti9 iC60N 1P 16A C-Curve
- Schneider Electric A9F79120 — Acti9 iC60N Miniature Circuit Breaker, 1P 20A C-curve
- Schneider Electric A9F79125 — Miniature Circuit Breaker (MCB) Acti9 iC60N 1P 25A C curve
- Schneider Electric A9F79132 — Miniature circuit breaker (MCB), Acti9 iC60N, 1P, 32A, C curve
- Schneider Electric A9F79150 — Miniature Circuit Breaker (MCB) Acti9 iC60N 1P 50A C-curve
- Schneider Electric A9F79163 — Acti9 iC60N DIN-rail Miniature Circuit Breaker 1P 63A C-Curve
Specifications
- Depth
- 78.5 Mm
- Width
- 54 Mm
- Height
- 85 Mm
- Standards
- EN/IEC 60947-2, EN/IEC 60898-1
- Curve code
- B
- Net weight
- 0.375 Kg
- Network type
- AC, DC
- Mounting support
- 35 mm DIN rail
- Device short name
- IC60N
- Network frequency
- 50/60 Hz
- Poles description
- 3P
- Tightening torque
- 3.5 N.M top or bottom
- [In] rated current
- 40 A
- Trip unit technology
- Thermal-magnetic
- Connections - terminals
- Single terminal (top or bottom), for 1...35 mm² rigid copper cable; 1...25 mm² flexible copper cable
- IP degree of protection
- IP20; IP40 in modular enclosure
- Manufacturer part number
- A9F78340
- Number of protected poles
- 3
- Suitability for isolation
- Yes
- [Ue] rated operational voltage
- 12...133 V AC 50/60 Hz, 220...240 V AC 50/60 Hz, 380...415 V AC 50/60 Hz, 440 V AC 50/60 Hz, <= 180 V DC
- Breaking capacity (IEC/EN 60898-1)
- 6000 A Icn at 400 V AC 50/60 Hz
- Breaking capacity (IEC/EN 60947-2)
- 10 KA Icu at 380...415 V AC 50/60 Hz
- Ambient air temperature for operation
- -35…70 °C
