O6H300

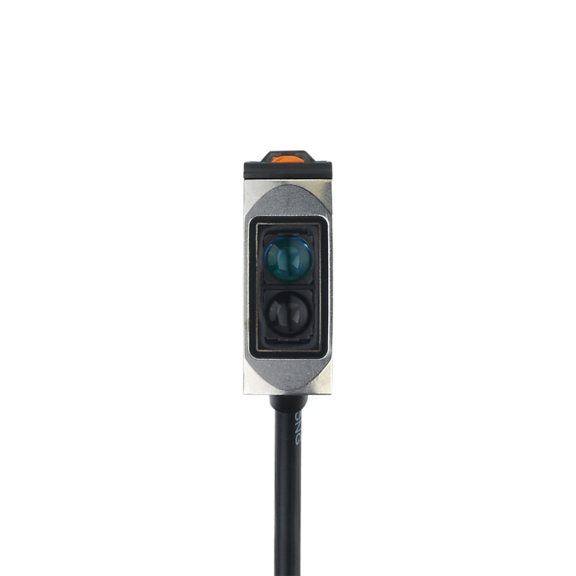

IFM O6H300 Diffuse reflection sensors with background suppression. IFM lists these product characteristics: Robust stainless steel housing for use in the food industry, Resistant to high-pressure cleaning with aggressive cleaning agents, High protection rating for the requirements of harsh industrial environments, Precise background suppression sensing on highly reflective background, Intuitive setting of range and output function.
Details
- Brand: IFM
- Part number: O6H300
- Series: O6
- Category: Photoelectric sensors
Related IFM parts
- Diffuse reflection sensors with background suppression
- Through-beam sensor transmitter
- Through-beam sensor transmitter
- Through-beam sensor transmitter
- Through-beam sensor transmitter
- Diffuse reflection sensor
- Through-beam sensor transmitter
- Diffuse reflection sensor
- Diffuse reflection sensor
- Diffuse reflection sensor
- Diffuse reflection sensor
- Diffuse reflection sensor
Specifications
- EMC
- EN 60947-5-2
- Cable
- 2 m, PVC; 3 x 0.25 mm²
- Display
- Switching status: 1 x LED, yellow; Power: 1 x LED, green
- Housing
- rectangular
- Remarks
- cULus - Class 2 source required
- Material
- housing: stainless steel (1.4404 / 316L); sealing: EPDM; plastics: PPSU
- Protection
- IP 65; IP 67; IP 68; IP 69K
- Range [mm]
- 2...200; (white paper 200 x 200 mm)
- Weight [g]
- 81.1
- Application
- food and beverage industry
- UL approval
- Ta: -25...80 °C; Enclosure type: Type 1; voltage supply: Class 2; UL approval number: E003
- MTTF [years]
- 708
- Lens material
- front lens:PMMA
- Pack quantity
- 1 pcs.
- Type of light
- red light
- Lens alignment
- Side sensing
- Dimensions [mm]
- 34.8 x 13 x 21
- Output function
- light-on/dark-on mode; (selectable)
- Special feature
- Background suppression
- IFM product code
- O6H300
- Protection class
- III
- Range adjustable
- yes
- Wave length [nm]
- 633
- Electrical design
- PNP
- Function principle
- Diffuse reflection sensor
- Operating voltage [V]
- 10...30 DC
- Tightening torque [Nm]
- 1; (screws)
- Current consumption [mA]
- 22; ((24 V))
- Short-circuit protection
- yes
- Ambient temperature [°C]
- -25...80
- Reverse polarity protection
- yes
- Switching frequency DC [Hz]
- 1000
- Max. light spot diameter [mm]
- 8
- Light spot dimensions refer to
- at maximum range
- Background suppression available
- yes
- Type of short-circuit protection
- yes (non-latching)
- Max. voltage drop switching output DC [V]
- 2.5
- Range on black object (6 % remission) [mm]
- 8...200
- Range on grey object (18 % remission) [mm]
- 4...200
- Range on white object (90 % remission) [mm]
- 2...200
- Permanent current rating of switching output DC [mA]
- 100
