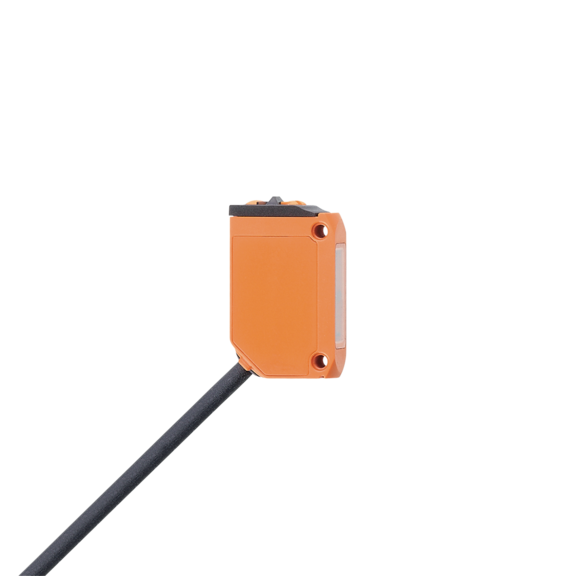

IFM O6E200 — Through-beam sensor receiver

IFM O6E200 Through-beam sensor receiver. IFM lists these product characteristics: Particularly compact housing for use where space is restricted, Very long range independent of the object color, Intuitive setting of the sensitivity via potentiometer, User-friendly selection of light-on or dark-on via rotary switch, Excellent price/performance ratio.

Details

Related IFM parts

Request a quote for O6E200

Specifications

EMC
EN 60947-5-2
Cable
2 m, PUR; 3 x 0.25 mm²
Display
Switching status: 1 x LED, yellow; Power: 1 x LED, green
Housing
rectangular
Remarks
cULus - Class 2 source required
Material
housing: ABS orange; upper part of the housing: PPSU black; sealing: EPDM
Range [m]
< 10
Protection
IP 65; IP 67
Weight [g]
59.5
Application
Industrial applications
UL approval
Ta: -25...60 °C; Enclosure type: Type 1; voltage supply: Class 2; UL approval number: E008
MTTF [years]
956
Lens material
front lens:PMMA
Pack quantity
1 pcs.
Type of light
red light
Lens alignment
Side sensing
Dimensions [mm]
35.4 x 13 x 21
Output function
light-on/dark-on mode; (selectable)
IFM product code
O6E200
Protection class
III
Range adjustable
yes
Wave length [nm]
633
Electrical design
PNP
Function principle
Through-beam sensor
Operating voltage [V]
10...30 DC
Tightening torque [Nm]
0.5; (screws)
Transmitter / receiver
receiver
Current consumption [mA]
7; ((24 V))
Short-circuit protection
yes
Ambient temperature [°C]
-25...60
Reverse polarity protection
yes
Switching frequency DC [Hz]
1000
Type of short-circuit protection
yes (non-latching)
Max. voltage drop switching output DC [V]
2.5
Permanent current rating of switching output DC [mA]
100
