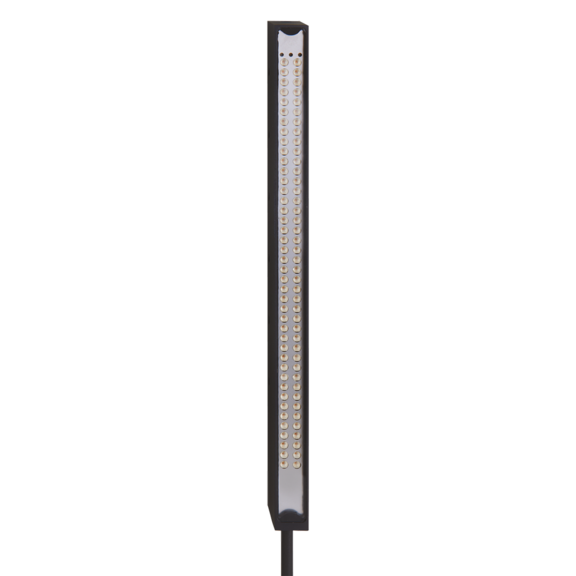

O2D926
IFM O2D926 External illumination. IFM lists these product characteristics: Homogeneous and virtually shadow-free illumination of the object, Permanent light or pulse operation, Pulse operation with higher light intensity to reduce the exposure time, With visible white light, Compact and robust housing.
Details
- Brand: IFM
- Part number: O2D926
- Series: O2
- Category: Photoelectric sensors
Related IFM parts
- External illumination
- External illumination
- External illumination
- External illumination
- External illumination
- External illumination
- 1D / 2D code readers
- 1D / 2D code readers
- 1D / 2D code readers
- 1D / 2D code readers
- 1D / 2D code readers
- 1D / 2D code readers
Specifications
- Cable
- 0.3 m, PUR, black; 4 x 0.34 mm²
- Design
- bar
- Display
- Illumination status: 1 x LED, yellow; Power: 1 x LED, green; Excess temperature: 1 x LED, red
- Trigger
- 24 V PNP
- Material
- housing: aluminum black anodized
- Connector
- 1 x M12; coding: A; Contacts: 4
- Protection
- IP 65
- Weight [g]
- 220.5
- Lens material
- Illuminated field:glass
- Pack quantity
- 1 pcs.
- Type of light
- White light
- Dimensions [mm]
- 200 x 13 x 18
- IFM product code
- O2D926
- Type of operation
- high light intensity (pulsed, permanent operation with cooling only); normal light intensity (permanent operation possible)
- Overheat protection
- yes; (deactivation at 65...75 °C)
- Color temperature [K]
- 5600
- Operating voltage [V]
- 24 DC
- Illuminated field [mm]
- 10 x 150
- Photobiological safety
- exempt group; (DIN EN 62471:2008)
- Current consumption [mA]
- Operating mode "permanent operation": 265; operating mode "high light intensity": 475
- Ambient temperature [°C]
- -10...55
- Storage temperature [°C]
- -25...75
