O2I412

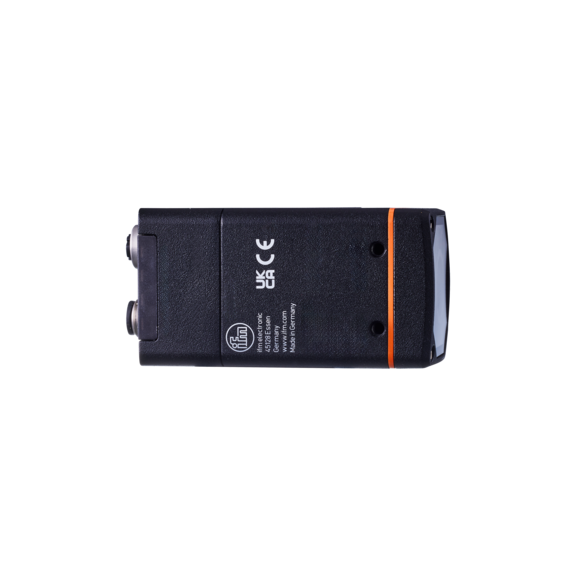

IFM O2I412 1D / 2D code readers. IFM lists these product characteristics: Multicode reader with wide-angle lens, Internal red light illumination, Several codes and text lines simultaneously.
Details
- Brand: IFM
- Part number: O2I412
- Series: O2
- Category: Photoelectric sensors
Related IFM parts
- 1D / 2D code readers
- 1D / 2D code readers
- 1D / 2D code readers
- 1D / 2D code readers
- 1D / 2D code readers
- 1D / 2D code readers
- 1D / 2D code readers
- 1D / 2D code readers
- 1D / 2D code readers
- 1D / 2D code readers
- 1D / 2D code readers
- 1D / 2D code readers
Specifications
- EMC
- EN IEC 61000-6-4 radiation of interference: industrial environments; EN IEC 61000-6-2 noise immunity: industrial environments
- Display
- Function: 2 x LED, green; Function: 2 x LED, yellow; Teach-Funktion: 1 x LED, green; Teach-Funktion: 1 x LED, yellow
- Trigger
- external; 24 V PNP/NPN (IEC 61131-2 Typ 3); internal
- Material
- housing: diecast zinc powder-coated; front lens: PMMA; LED window: PC; pushbuttons: POM
- Profiles
- Common - I&D: Identification and Diagnosis; Function: Locator; Function: ProductURI
- Protocol
- TCP/IP
- Lens type
- super wide angle
- Protection
- IP 65
- Usage type
- Parameter setting
- Weight [g]
- 590.6
- UL approval
- Ta: -10...50 °C; Enclosure type: 1; voltage supply: Limited Energy; File number UL: E364788
- Image sensor
- CMOS image sensor black/white
- MTTF [years]
- 58
- Legible fonts
- Industrial; Document; OCR-A; OCR-B; Pharma; Semi; Universal; Dot Print
- Pack quantity
- 1 pcs.
- Type of light
- red light
- Readable codes
- Interleaved 2-of-5; Industrial 2-of-5; Code 39; Code 93; Code 128; Pharmacode; Codabar; EAN8; EAN8 Add-On 2; EAN8 Add-On 5; EAN13; EAN13 Add-On 2; EAN13 Add-On 5; UPC-A; UPC-A Add-On 2; UPC-A Add-On 5; UPC-E; UPC-E Add-On 2; UPC-E Add-On 5; GS1 DataBar Omnidirectional; GS1 DataBar Truncated; GS1 DataBar Stacked; GS1 DataBar Stacked Omnidirectional; GS1 DataBar Limited; GS1 DataBar Expanded; GS1 DataBar Expanded Stacked; GS1 - 128; MSI Barcode; ECC200; PDF-417; QR; Micro-QR; Aztec Code; GS1 ECC200; GS1 QR Code; GS1 Aztec Code
- Dimensions [mm]
- 45 x 45 x 86
- Output function
- configurable
- Special feature
- polarization filter
- Factory settings
- IP address: 192.168.0.69; subnet mask: 255.255.255.0 (Class C); gateway IP address: 192.168.0.201; MAC address: see type label
- IFM product code
- O2I412
- IO-Link revision
- 1.1
- Pollution degree
- 3
- Protection class
- III
- Sealing material
- FKM
- Shock resistance
- EN 60068-2-27: 50 g 11 ms / not repetitive; EN 60068-2-27: 40 g 6 ms / repetitive
- Text recognition
- yes
- Type of mounting
- screw mounting; (bore hole M4 x 7 mm)
- Wave length [nm]
- 617
- Electrical design
- PNP/NPN; (configurable)
- Electrical safety
- EN IEC 61010-2-201: electrical supply only via PELV circuits
- Transmission rate
- 10 MBit/s; 100 MBit/s
- Transmission type
- COM3 (230,4 kBaud)
- Operating elements
- 1 x: Teach-Taste
- Overload protection
- yes
- Supported DeviceIDs
- Type of operation: DeviceID; default: 1699
- Overvoltage category
- II
- Vibration resistance
- EN 60068-2-6: 2 g (10 ... 150 Hz)
- Code quality based on
- ISO / IEC 15415; ISO / IEC 15416; AIM DPM; ISO/IEC TR 29158; SEMI T10
- Image resolution [px]
- 1280 x 960
- Operating voltage [V]
- 18...30 DC
- Transmission standard
- 10Base-T; 100Base-TX
- Accessories (optional)
- Operating software; Mounting accessories; Adapter cable; protective and filter windows
- Max. reading rate [Hz]
- 40
- Photobiological safety
- exempt group; (EN 62471)
- Tightening torque [Nm]
- 2.1
- Communication interface
- IO-Link
- Field of view size [mm]
- Operating distance: Field of view; 15: 18 x 13; 100: 80 x 60; 300: 226 x 170; 500: 373 x 280; 1000: 739 x 555
- Omnidirectional reading
- yes
- Operating distance [mm]
- > 15
- Total number of outputs
- 2
- Current consumption [mA]
- < 400; (18 V DC typical)
- Short-circuit protection
- yes
- Ambient temperature [°C]
- -10...50
- Number of digital outputs
- 2; (configurable)
- Parameter setting options
- teach button; via PC with ifm Vision Assistant
- Storage temperature [°C]
- -40...70
- Required master port class
- A
- Reverse polarity protection
- yes
- Min. process cycle time [ms]
- 4.2
- Number of inputs and outputs
- Number of digital outputs: 2
- Max. current consumption [mA]
- 800; (18V DC, with switched outputs, memory stick active)
- Number of Ethernet interfaces
- 1
- Polarization filter available
- yes
- Bewegungsgeschwindigkeit [m/s]
- 7
- Max. relative air humidity [%]
- 90; (non condensing)
- Max. height above sea level [m]
- 4000
- Type of short-circuit protection
- yes (non-latching)
- Max. current load per output [mA]
- 100
- Max. inclination to the image plane [°]
- 45
- Max. voltage drop switching output DC [V]
- 2
