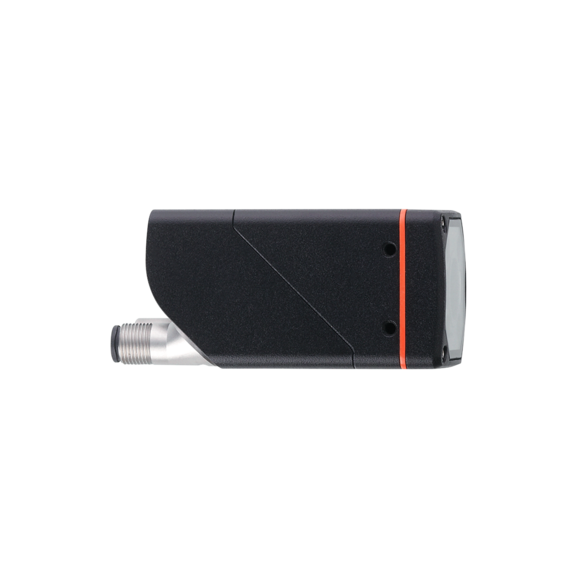

IFM O2D544 — Object recognition sensor

IFM O2D544 Object recognition sensor. IFM lists these product characteristics: Combinable 2D inspection of contours and surfaces for maximum quality assurance, User-friendly software simplifies inspection task set-up, Powerful algorithms master even demanding requirements, Reliable functioning in changing light conditions, Electric focus on details.

Details

Related IFM parts

Request a quote for O2D544

Specifications

EMC
EN IEC 61000-6-4 radiation of interference: industrial environments; EN IEC 61000-6-2 noise immunity: industrial environments
Display
Function: 2 x LED, green; Function: 2 x LED, yellow; Multi-function button: 2 x LED, green/yellow
Trigger
external; 24 V PNP/NPN (IEC 61131-2 Typ 3); TCP/IP; PROFINET; internal
Material
housing: diecast zinc powder-coated; front lens: gorilla glass; LED window: PC; pushbuttons: POM
Protocol
TCP/IP; PROFINET
Connector
1 x M12; coding: D; Contacts: 4; Moulded body: stainless steel; sealing: FKM
Lens type
Telephoto lens
Protection
IP 65
Usage type
Parameter setting; Data transmission
Weight [g]
626.1
UL approval
Ta: -10...50 °C; Enclosure type: 1; voltage supply: Limited Energy; File number UL: E364788
Image sensor
CMOS image sensor black/white
MTTF [years]
59
Pack quantity
1 pcs.
Type of light
RGBW
Dimensions [mm]
45 x 45 x 86
Output function
configurable
Special feature
polarization filter
Factory settings
IP address: 192.168.0.69; subnet mask: 255.255.255.0 (Class C); gateway IP address: 192.168.0.201; MAC address: see type label
IFM product code
O2D544
Pollution degree
3
Protection class
III
Sealing material
FKM
Shock resistance
EN 60068-2-27: 50 g 11 ms / not repetitive; EN 60068-2-27: 40 g 6 ms / repetitive
Type of mounting
screw mounting; (bore hole M4 x 7mm)
Wave length [nm]
625; 525; 453
Electrical design
PNP/NPN; (configurable)
Electrical safety
EN IEC 61010-2-201: electrical supply only via PELV circuits
Transmission rate
10 MBit/s; 100 MBit/s
Operating elements
1: Multi-function button
Overload protection
yes
Overvoltage category
II
Vibration resistance
EN 60068-2-6: 2 g (10 ... 150 Hz)
Image resolution [px]
1280 x 960
Operating voltage [V]
18...30 DC
Transmission standard
10Base-T; 100Base-TX
Accessories (optional)
Mounting accessories; Protective panes
Max. reading rate [Hz]
40
Photobiological safety
risk group 2; (EN 62471)
Tightening torque [Nm]
2.1
Communication interface
Ethernet
Field of view size [mm]
Operating distance: Field of view; 200: 38 x 29; 300: 58 x 43; 500: 96 x 72; 1000: 192 x 144; 1500: 288 x 216; 2000: 384 x 288; 5000: 960 x 720
Operating distance [mm]
> 200
Current consumption [mA]
< 320; (24V DC typical)
Short-circuit protection
yes
Ambient temperature [°C]
-10...50
Number of digital outputs
2; (configurable)
Parameter setting options
via PC with ifm Vision Assistant
Storage temperature [°C]
-40...70
Reverse polarity protection
yes
Number of inputs and outputs
Number of digital outputs: 2
Max. current consumption [mA]
800; (18V DC, with switched outputs, memory stick active)
Number of Ethernet interfaces
1
Polarization filter available
yes
Bewegungsgeschwindigkeit [m/s]
7
Max. relative air humidity [%]
90; (non condensing)
Max. height above sea level [m]
4000
Type of short-circuit protection
yes (non-latching)
Max. current load per output [mA]
100
Max. voltage drop switching output DC [V]
1
