6AG2333-0SB00-4AY0

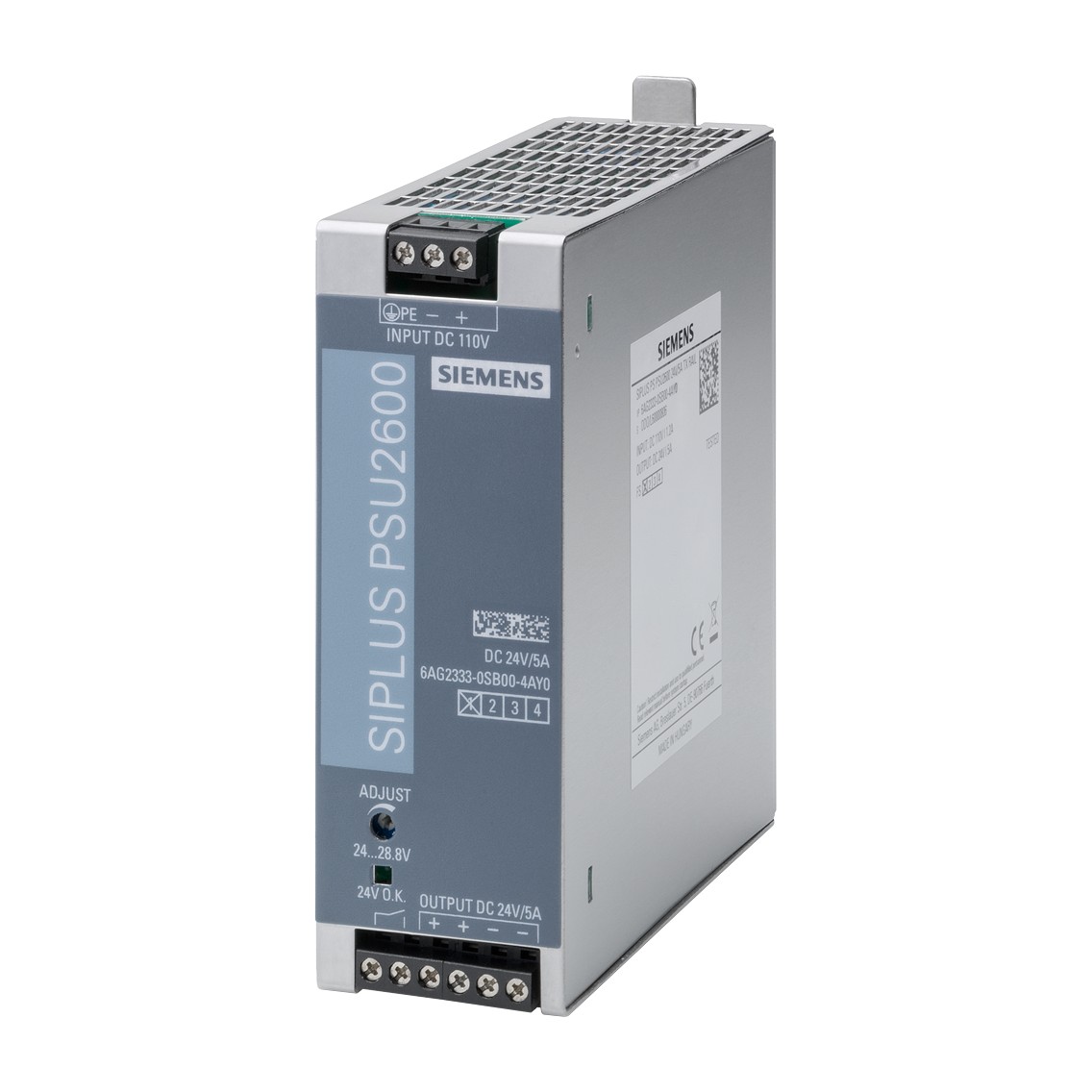

Siemens 6AG2333-0SB00-4AY0 SIPLUS PS PSU2600 24V/5A TX RAIL. SIPLUS PS PSU2600 24V/5A TX rail input: 110 V DC, output: 24 V DC/5 A, -40…+70 °C, OT4 with ST1/2 (+85 °C for 10 minutes), It belongs to 1-phase, 24 V DC. Recorded manufacturer technical characteristics include Efficiency: 87 %; Rated Power: 120 W; Hold-up time: 20 ms (at 110V input); Input Voltage: 110 V DC (nominal), 77...154 V DC (range); Output Ripple: 50 mV (max); Output Current: 5 A; Output Voltage: 24 V DC (nominal), adjustable 24...28.8 V; Protection Rating: IP20.
Details
- Brand: Siemens
- Part number: 6AG2333-0SB00-4AY0
- Series: SIPLUS PS PSU2600
- Category: Power Supply
Related Siemens parts
- Siemens 6EP1334-3BA10 — SITOP PSU200M 10 A Stabilized Power Supply
- Siemens 6EP1333-2BA20 — SITOP PSU100S 24 V/5 A stabilized power supply input: 120/230 V AC output: 24 V DC/5 A
- Siemens 6EP1333-3BA10 — SITOP PSU200M 5 A stabilized power supply input: 120/230-500 V AC output: 24 V DC/5 A
- Siemens 6EP1333-3BA10-8AC0 — SITOP PSU200M plus 5 A Stabilized power supply input: AC 120-230/230-500 V output: 24 V DC/5 A Option for with protective varnish
- Siemens 6EP1334-3BA10-8AB0 — SITOP PSU200M plus 10 A Stabilized power supply input: AC 120-230/230-500 V output: DC 24 V/10 A Option for with protective varnish
- Siemens 6EP1336-3BA10 — SITOP PSU8200 20 A stabilized power supply input: 120-230 V AC 110-220 V DC output: 24 V DC/20 A
- Siemens 6EP3333-8SB00-0AY0 — SITOP PSU8200 24 V/5 A stabilized power supply input: 120/230 V AC output: 24 V DC/5 A
- Siemens 6EP3334-8SB00-0AY0 — SITOP PSU8200 24 V/10 A stabilized power supply input: 120/230 V AC output: 24 V DC/10 A
- Siemens 6EP3337-8SB00-0AY0 — SITOP PSU8200 24 V/40 A stabilized power supply input: 120/230 V AC output: 24 V DC/40 A
- Siemens 6EP3337-8SC00-0AY0 — SITOP PSU8200 EX 24 V/40 A Stabilized power supply input: 120/230 V AC output: 24 V DC/40 A
- Siemens 6EP3436-8SB00-0AY0 — SITOP PSU8200 24 V/20 A stabilized power supply input: 400-500 V 3 AC output: 24 V DC/20 A
- Siemens 6EP3437-8SB00-0AY0 — SITOP PSU8200 24 V/40 A stabilized power supply input: 400-500 V 3 AC output: 24 V DC/40 A
Request a quote for 6AG2333-0SB00-4AY0
Specifications
- Efficiency
- 87 %
- Rated Power
- 120 W
- Hold-up time
- 20 ms (at 110V input)
- Product type
- Power Supply
- Input Voltage
- 110 V DC (nominal), 77...154 V DC (range)
- Output Ripple
- 50 mV (max)
- Rated current
- 5A
- Rated voltage
- 24V
- Output Current
- 5 A
- Output Voltage
- 24 V DC (nominal), adjustable 24...28.8 V
- Protection Rating
- IP20
- Output Voltage Peak
- 200 mV (max)
- Potential separation
- Input and output
- Operating Temperature
- -40...+70 °C
- Overvoltage protection
- < 32 V
- Inrush Current Limiting
- 25 A (max)
- Manufacturer part number
- 6AG2333-0SB00-4AY0
- Short-circuit protection
- Yes
