6AG1332-1SH71-4AA0

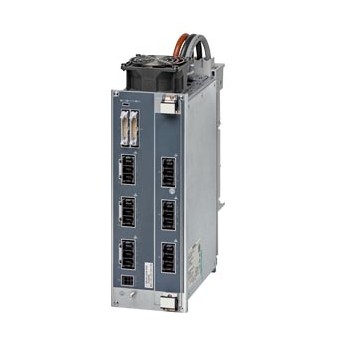

Siemens 6AG1332-1SH71-4AA0 SIPLUS POWER MODUL PM1207. SIPLUS S7-1200 PM 1207 based on 6EP1332-1SH71 with conformal coating, 0…+60 °C, stabilized power supply input: 120/230 V AC output: 24 V DC/2.5 A. It belongs to 1-phase, 24 V DC (for SIPLUS S7-1200). Recorded manufacturer technical characteristics include Efficiency: 83 %; Input type: 1-phase AC; Power loss: 12 W; Input voltage AC: 120/230 V; Galvanic isolation: Between input and output; Protection class IP: IP20; Line frequency range: 47 ... 63 Hz; Rated current output: 2.5 A.
Details
- Brand: Siemens
- Part number: 6AG1332-1SH71-4AA0
- Series: SIPLUS POWER MODUL
- Category: Power Supply
Related Siemens parts
- Siemens 6AG1332-1SH71-7AA0 — SIPLUS S7-1200 PM1207 Stabilized Power Supply with Conformal Coating
- Siemens 6EP3344-0SB00-0AY0 — SITOP PSU100E 48 V/5 A Stabilized power supply Input: 120 / 230 V AC Output: 48 V DC/5 A
- Siemens 6EP1433-0AA00 — SITOP PSU300E 24 V/5 A Stabilized power supply input: 3 AC 400-500 V output: 24 V DC/5 A
- Siemens 6EP1321-1LD01 — PSU100D 12 V/3 A Stabilized power supply input: 100-240 V AC output: 12 V DC/3 A
- Siemens 6EP1322-1LD01 — PSU100D 12 V/8.5 A stabilized power supply input: 100-240 V AC output: 12 V DC/8.5 A
- Siemens 6EP1331-1LD01 — PSU100D 24 V/2.2 A stabilized power supply input: 100-240 V AC output: 24 V DC/2.2 A
- Siemens 6EP1333-1LD01 — PSU100D 24 V/6.25 A stabilized power supply input: 100-120 V/200-240 V AC output: 24 V DC/6.25 A
- Siemens 6EP1334-1LD01 — PSU100D 24 V/14.6 A stabilized power supply input: 100-120 V/200-240 V AC output: 24 V DC/14.6 A
- Siemens 6EP3321-7SB00-0AX0 — SITOP PSU6200 12 V/2 A stabilized power supply input: 120 - 240 V AC (120 - 240 V DC) output: 12 V DC/2 A
- Siemens 6EP3323-7SB00-0AX0 — SITOP PSU6200 12 V/7 A stabilized power supply input: 120 - 240 V AC (120 - 240 V DC) output: 12 V DC/ 7 A
- Siemens 6EP3324-7SB00-3AX0 — SITOP PSU6200 12 V/12 A stabilized power supply input: 120 - 240 V AC (110 - 240 V DC) output: 12 V DC/12 A with diagnostic interface
- Siemens 6EP3331-7SB00-0AX0 — SITOP PSU6200 24 V/1.3 A stabilized power supply input: 120 - 240 V AC (120 - 240 V DC) output: 24 V DC/1.3 A
Request a quote for 6AG1332-1SH71-4AA0
Specifications
- Efficiency
- 83 %
- Input type
- 1-phase AC
- Power loss
- 12 W
- Product type
- Power Supply
- Rated current
- 2.5 A
- Input voltage AC
- 120/230 V
- Galvanic isolation
- Between input and output
- Protection class IP
- IP20
- Line frequency range
- 47 ... 63 Hz
- Rated current output
- 2.5 A
- Supplied active power
- 60 W
- Overvoltage protection
- < 33 V
- Output voltage DC rated
- 24 V
- Input voltage 1 AC range
- 85 ... 132 V
- Input voltage 2 AC range
- 176 ... 264 V
- Manufacturer part number
- 6AG1332-1SH71-4AA0
- Output short-circuit proof
- Yes
- Ambient operating temperature
- 0 ... 60 °C
- Enduring short circuit current RMS value
- 2.7 A
- Buffering time for rated value of output current
- minimum 20 ms
