XB5AA42

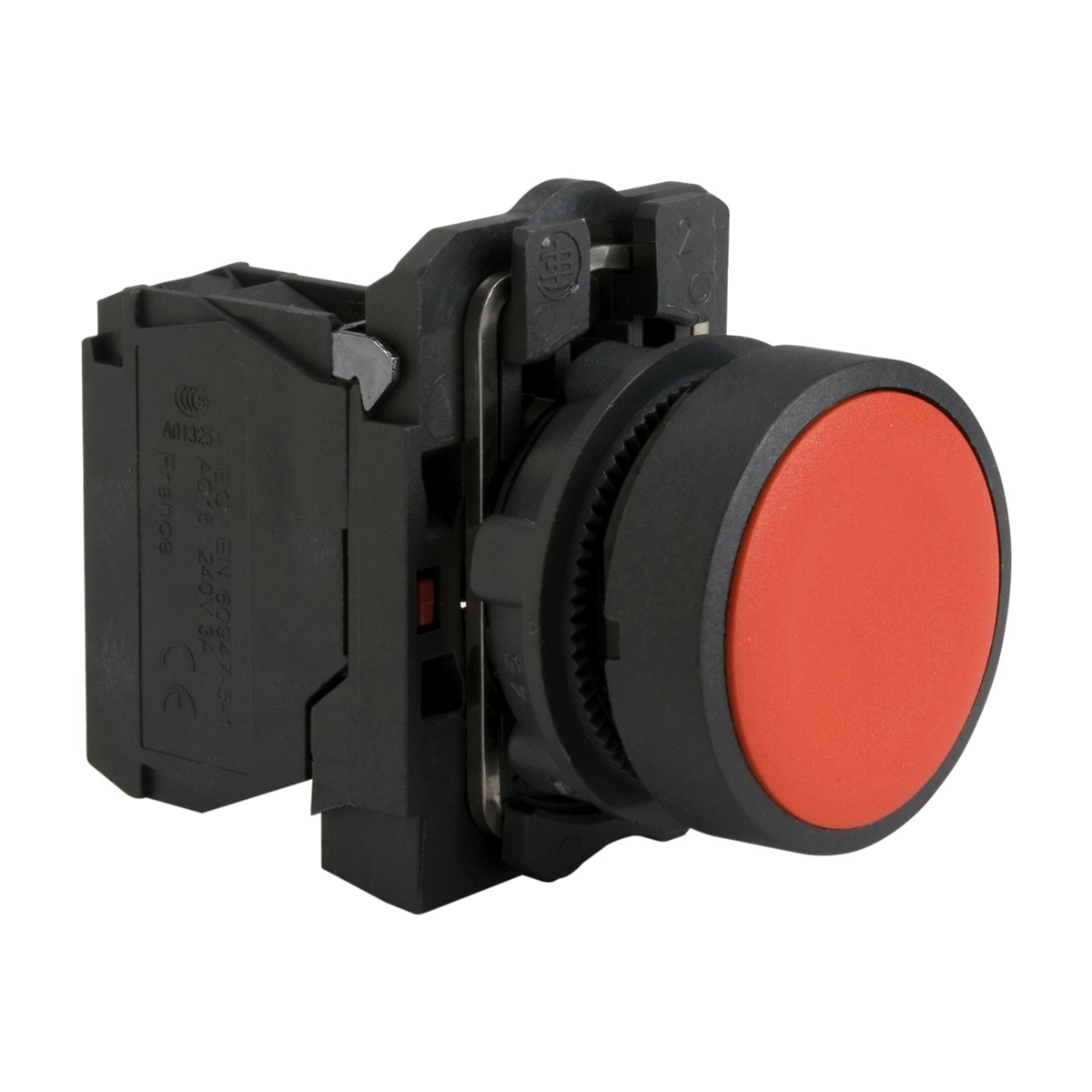

Schneider Electric XB5AA42 Harmony XB5 Flush Red Unmarked Push Button, Spring Return, 1NC. The Schneider Electric XB5AA42 push button is a robust and reliable control component from the Harmony XB5 range, designed for a wide array of industrial control applications. Featuring a 22.5 mm mounting diameter, this flush, red, unmarked push button includes a spring-return operator and a 1 NC (normally closed) slow-break contact. Its dark grey plastic bezel ensures durability and a clean aesthetic, while connectivity is simplified with secure screw clamp terminals. Built for demanding environments, the XB5AA42 boasts impressive IP66, IP67, IP69, and IP69K protection ratings, alongside NEMA UL type 4X/13 and IK03 resistance, offering excellent protection against dust, water, and impact. With a mechanical durability of 10 million cycles, an operational temperature range of -40 to 70 °C, and a rated operational current of 3 A at 240 V (AC-15), it ensures long-term, dependable performance. This versatile Schneider Electric push button is an ideal choice for control panels in sectors prevalent across Egypt and the Gulf region, including oil and gas facilities, water treatment plants, cement production, food and beverage processing, and building services, where reliable heavy-duty push buttons are essential for operational safety and efficiency.
Details
- Brand: Schneider Electric
- Part number: XB5AA42
- Series: Harmony XB5
- Category: Push Button
Related Schneider Electric parts
- Schneider Electric XB5AA45 — Push button, plastic, flush, red, 22mm, spring return, unmarked, 1NO+1NC
- Schneider Electric XB5AA51 — Harmony XB5 plastic flush yellow 22.5mm spring return unmarked 1NO push button
- Schneider Electric XB5AA61 — Harmony XB5 Push Button, 22mm, Plastic, Blue Flush, Spring Return, 1NO
- Schneider Electric XB5AD21 — Harmony XB5 Selector Switch, 22mm, 2 Positions, Stay Put, 1NO
- Schneider Electric XB5AD25 — Harmony XB5 Selector Switch 2 Positions Stay Put 1NO+1NC
- Schneider Electric XB5AD33 — Selector Switch, 22.5mm, 3-Position, Stay Put, 2 NO
- Schneider Electric XB5AD53 — Harmony XB5 22mm Plastic Selector Switch, 3-Position Spring Return, 2 NO
- Schneider Electric XB5AG21 — Harmony XB5 Key Switch Selector, 2-Position, 1 NO
- Schneider Electric XB5AG33 — Harmony XB5 Key Switch Selector 22mm, 3-Position, Stay Put, Key 455, 2 NO
- Schneider Electric XB5AK123M5 — Illuminated Selector Switch, 2-Position, 1NO+1NC, 230-240V AC
- Schneider Electric XB5AL42 — Push button, plastic, projecting, red, 22mm, spring return, unmarked, 1NC
- Schneider Electric XB5AP21 — Push button, plastic, projecting, black, 22mm, spring return, booted, unmarked, 1NO
Specifications
- Net weight
- 0.037 kg
- Connections
- Screw clamp terminals
- Bezel material
- Plastic (Dark grey)
- Operator profile
- Red flush, unmarked
- Type of operator
- Spring return
- Contact operation
- Slow-break
- Mounting diameter
- 22.5 mm
- Mechanical durability
- 10,000,000 Cycles
- Product certifications
- DNV, CSA, UL listed, LROS (Lloyds register of shipping), BV
- IK degree of protection
- IK03
- IP degree of protection
- IP66, IP67, IP69, IP69K
- Manufacturer part number
- XB5AA42
- NEMA degree of protection
- UL type 4X/13
- Contacts type and composition
- 1 NC
- [Ui] rated insulation voltage
- 600 V
- [Ie] rated operational current
- 3 A at 240 V, AC-15
- Ambient air temperature for operation
- -40…70 °C
- [Ith] conventional free air thermal current
- 10 A
