XB4BL42

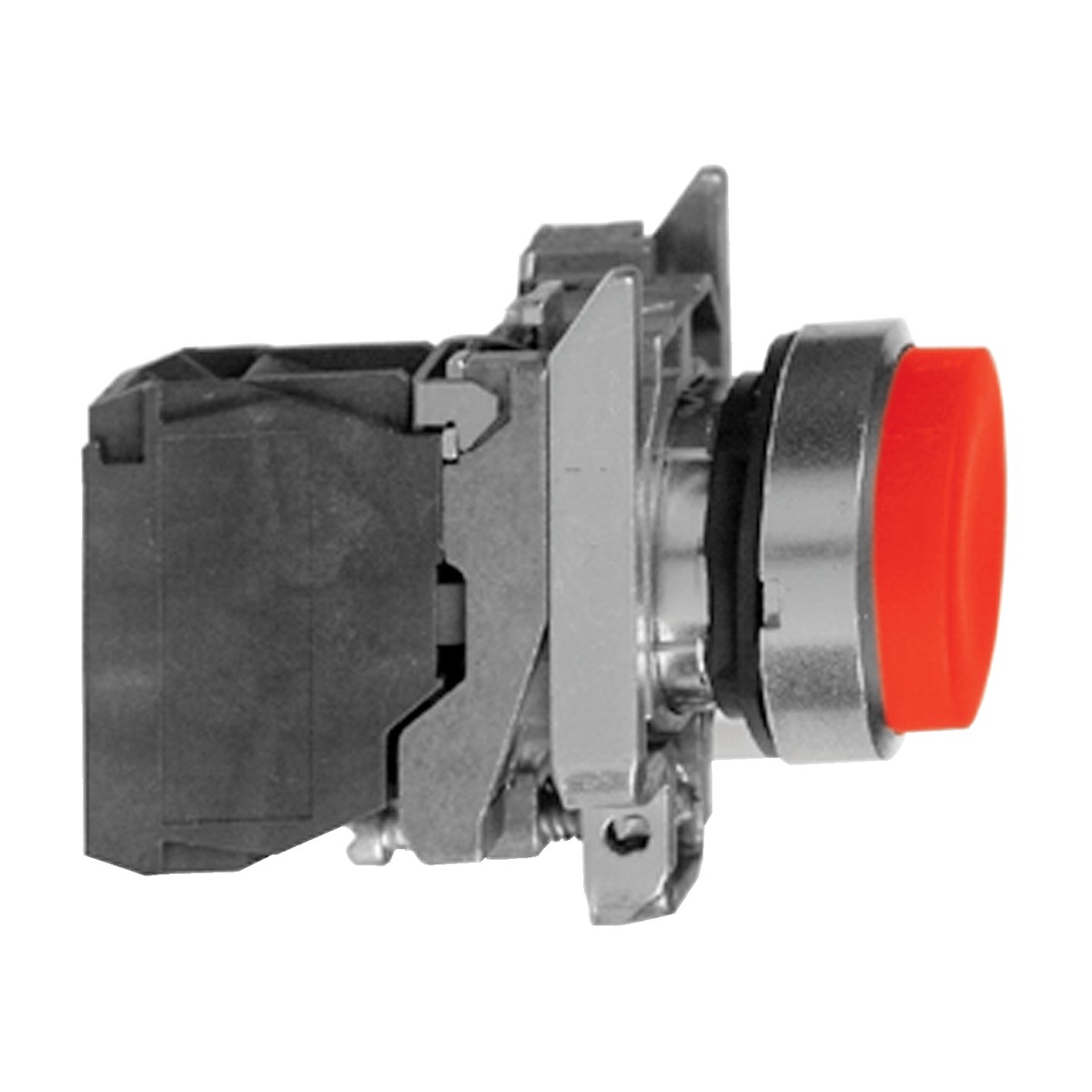

Schneider Electric XB4BL42 XB4 Push Button, Metal, Red Projecting, 1NC. The Schneider Electric XB4BL42 is a robust 22.5 mm metal-bezel push-button designed for reliable control in industrial environments. Part of the acclaimed Harmony XB4 range, this complete product features a chromium-plated metal bezel and a distinctive red, projecting, unmarked operator with spring return functionality. Equipped with one Normally Closed (1 NC) slow-break contact, it ensures precise signaling for critical operations. The XB4BL42 offers exceptional durability, boasting a mechanical life of 10 million cycles and an electrical life of 1 million cycles at 230V AC-15. It is built to withstand harsh conditions, holding impressive IP66, IP67, IP69, IP69K, and NEMA Type 4X/13 degrees of protection, alongside an IK06 impact rating. Its wide operating temperature range of -40 to 70 °C further enhances its versatility. Ideal for demanding applications in Egyptian and Gulf industries such as cement production, oil and gas, water treatment, and food and beverage processing, the Schneider Electric XB4BL42 provides dependable performance where operator interface is crucial. For detailed pricing and availability, please request a quote.
Details
- Brand: Schneider Electric
- Part number: XB4BL42
- Series: Harmony XB4
- Category: Push-button
Related Schneider Electric parts
- Schneider Electric XB4BP21 — XB4 Push Button, Metal, Projecting, Black, 22.5mm, Spring Return, 1NO
- Schneider Electric XB4BP42 — Harmony XB4 Push Button, Red, Projecting, 22mm, 1NC
- Schneider Electric XB4BS8442 — Emergency Stop Push-Button, Metal, Red Mushroom Ø40mm, Turn to Release, 1 NC
- Schneider Electric XB4BT845 — Harmony XB4 Emergency Stop Pushbutton, Ø40mm Red Mushroom, Trigger Latching Push-Pull, 1 NO + 1 NC
- Schneider Electric XB4BVB3 — Pilot light, metal, green, 22.5mm, integral LED, 24V AC/DC
- Schneider Electric XB4BVB5 — Harmony XB4 22mm Metal Orange Universal LED Pilot Light, 24V AC/DC
- Schneider Electric XB4BVG3 — Pilot light, Harmony XB4, metal, green, 22mm, universal LED, plain lens, 110-120V AC
- Schneider Electric XB4BVG4 — Pilot light XB4, red, plain lens, 110-120V AC
- Schneider Electric XB4BVG5 — 22mm Metal-Bezel Pilot Light Universal LED Orange 110-120V AC
- Schneider Electric XB4BVM4 — Harmony XB4 22mm Metal Red Universal LED Pilot Light Plain Lens 230-240V AC
- Schneider Electric XB4BVM5 — Harmony XB4 Pilot Light, Metal, Orange, 22mm, Universal LED, 230-240V AC
- Schneider Electric XB4BW33B5 — Illuminated Push Button, Green Flush, 22mm, Universal LED, Plain Lens, 1NO+1NC, 24V AC/DC
Specifications
- Depth
- 57 Mm
- Width
- 30 Mm
- Height
- 47 Mm
- Net weight
- 0.081 Kg
- Bezel material
- Chromium plated metal
- Operator profile
- Red projecting, unmarked
- Type of operator
- Spring return
- Mounting diameter
- 22.5 Mm
- Electrical durability
- 1000000 Cycles, AC-15, 2 A at 230 V
- Mechanical durability
- 10000000 Cycles
- Connections - terminals
- Screw clamp terminals
- IK degree of protection
- IK06
- IP degree of protection
- IP66, IP67, IP69, IP69K
- Manufacturer part number
- XB4BL42
- NEMA degree of protection
- UL type 4X/13
- Contacts type and composition
- 1 NC
- [Ui] rated insulation voltage
- 600 V (pollution degree 3)
- Ambient air temperature for operation
- -40…70 °C
- [Ie] rated operational current (AC-15)
- 3 A at 240 V
- [Ie] rated operational current (DC-13)
- 0.27 A at 250 V
- [Ith] conventional free air thermal current
- 10 A
