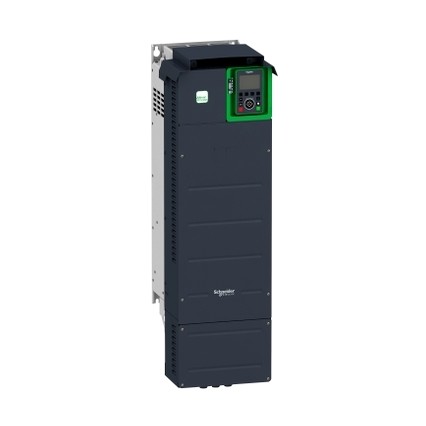

ATV930D90N4C
Schneider Electric ATV930D90N4C Altivar Process ATV900 variable speed drive, ATV930, 90kW, 400 to 480V, without braking unit, IP21. This Altivar Process ATV900 variable speed drive can feed 3-phase synchronous and asynchronous power motors. It is suitable for motors with power rating up to 90kW/125HP for applications requiring slight overload (up to 120%). It is suitable for motors with power rating up to 75kW/100HP for applications requiring significant overload (up to 150%). It works at a rated supply voltage from 380Vac to 480Vac. This variable speed / frequency drive (VSD / VFD) is specifically designed for industrial processes. In the following market segments, oil and gas, mining, minerals and metals, food and beverage water and wastewater. It offers high motor performance on any motor and total control of any kind of coupling in master/slave applications. Network services help ensure operation continuity even in case of connection breakdown. Web server and data logging help reduce downtime through fast troubleshooting and preventive maintenance. Its advanced connectivity, including EtherNet/IP and Modbus TCP, allows deep integration into automation architectures.
Details
- Brand: Schneider Electric
- Part number: ATV930D90N4C
- Series: Altivar Process ATV900
- Category: Variable Frequency Drive
Related Schneider Electric parts
- Schneider Electric ATV930U07N4Z — Altivar Process ATV930 Variable Speed Drive 0.75 kW
- Schneider Electric ATV930U15N4Z — Altivar Process ATV930 Variable Speed Drive 1.5 kW
- Schneider Electric ATV930U30N4 — Altivar Process ATV930 Variable Speed Drive, 3 kW, 400/480 V, IP21
- Altivar Process ATV900 Variable Speed Drive ATV930U40N4Z, 4kW, 380-480V, IP21
- Schneider Electric ATV930U55N4Z — Altivar Process ATV930 Variable Speed Drive 5.5kW 380-480V IP21
- Schneider Electric ATV930U75N4 — Altivar Process ATV930 Variable Speed Drive, 7.5kW, 400/480V, IP21
- Schneider Electric ATV930D15N4 — Altivar Process ATV930 Variable Speed Drive, 15kW, 400/480V, with braking unit, IP21
- Schneider Electric ATV930D18N4Z — Altivar Process ATV930 Variable Speed Drive 18.5 kW
- Schneider Electric ATV930D30N4Z — Altivar Process ATV930 Variable Speed Drive 30kW 380-480V
- Schneider Electric ATV930D45N4Z — Altivar Process ATV930 Variable Speed Drive 45kW 380-480V IP21
- ATV930D37N4 variable speed drive 37kW 400/480V with braking unit IP21
- Schneider Electric ATV930U22Y6 — Altivar Process ATV930 Variable Speed Drive 2.2kW
Request a quote for ATV930D90N4C
Specifications
- Relay outputs
- 3
- Network phases
- 3 phases
- Analogue inputs
- 3
- Discrete inputs
- 10
- Analogue outputs
- 2
- Discrete outputs
- 2
- Network frequency
- 50...60 Hz
- Prospective line Isc
- 50 kA
- Rated supply voltage
- 380...480 V
- IP degree of protection
- IP21
- Manufacturer part number
- ATV930D90N4C
- Maximum output frequency
- 599 Hz
- Motor power (heavy duty)
- 75.0 kW
- Motor power (normal duty)
- 90.0 kW
- Nominal switching frequency
- 2.5 kHz
- Apparent power (normal duty)
- 112.9 kVA at 480 V
- Continuous output current (heavy duty)
- 145 A at 2.5 kHz
- Continuous output current (normal duty)
- 173 A at 2.5 kHz
