A9R12240

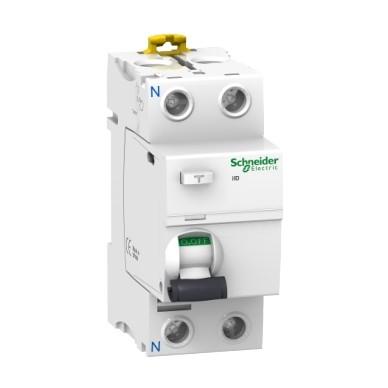

Schneider Electric A9R12240 Acti9 iID Residual current circuit breaker 2P 40A 100mA Type AC. The Schneider Electric A9R12240 is a robust Acti9 iID Residual Current Circuit Breaker (RCCB) engineered for reliable earth-leakage protection. This 2-pole, 40A device features a 100mA instantaneous Type AC earth-leakage sensitivity, safeguarding both personnel and equipment from electrical shocks and fire hazards. Designed for AC networks, it operates effectively at 230-240 V AC and 50/60 Hz, making it perfectly suited for the electrical standards prevalent across Egypt and the Gulf region. With a rated conditional short-circuit current of 10 kA and an impulse withstand voltage of 6 kV, the A9R12240 ensures high performance and durability. It mounts easily on a 35 mm DIN rail, boasts an IP20 degree of protection, and maintains operational stability in ambient temperatures from -5 to 60 °C. Typical applications in the region include building services, water treatment facilities, food and beverage processing, and textiles, where dependable earth-leakage protection is critical. Rely on Schneider Electric for quality and safety.
Details
- Brand: Schneider Electric
- Part number: A9R12240
- Series: Acti9
- Category: Residual Current Circuit Breaker
Related Schneider Electric parts
- Schneider Electric A9R12263 — Residual current circuit breaker iID, 2P, 63A, AC type, 100mA
- Schneider Electric A9R12280 — Residual current circuit breaker iID 2P 80A AC 100mA
- Schneider Electric A9R12440 — Acti9 iID Residual current circuit breaker (RCCB) 4P 40A 100mA AC type
- Schneider Electric A9R12463 — Residual current circuit breaker (RCCB) Acti9 iID 4P 63A AC type 100mA
- Schneider Electric A9R14225 — Residual current circuit breaker, 2P, 25A, AC type, 300mA
- Schneider Electric A9R14425 — Residual current circuit breaker (RCCB) Acti9 iID 4P 25A AC type 300mA
- Schneider Electric A9R14440 — Acti9 iID Residual Current Circuit Breaker 4P 40A AC Type 300mA
- Schneider Electric A9R14463 — Residual Current Circuit Breaker (RCCB) iID 4P 63A AC 300mA
- Schneider Electric A9R14480 — Acti9 iID RCCB 4P 80A AC 300mA
- Schneider Electric A9R15263 — Acti9 iID Residual current circuit breaker (RCCB) 2P 63A AC type 300mA selective
- Schneider Electric A9R15280 — Acti9 iID Residual Current Circuit Breaker (RCCB) 2P 80A 300mA AC Type
- Schneider Electric A9R15440 — Acti9 iID Residual Current Circuit Breaker (RCCB) 4P 40A 300mA Selective AC Type
Specifications
- Depth
- 69 mm
- Width
- 36 mm
- Height
- 85 mm
- Standards
- EN/IEC 61008-1, EN/IEC 61008-2-1
- Network type
- AC
- Product weight
- 210 g
- Mounting support
- 35 mm DIN rail
- Device short name
- iID
- Poles description
- 2P
- [In] rated current
- 40 A
- IP degree of protection
- IP20 conforming to IEC 60529
- Manufacturer part number
- A9R12240
- Earth-leakage sensitivity
- 100 mA
- Product or component type
- Residual current circuit breaker (RCCB)
- [Ui] rated insulation voltage
- 500 V AC 50/60 Hz
- Earth-leakage protection class
- Type AC
- [Ue] rated operational voltage
- 230...240 V AC 50/60 Hz
- Earth-leakage protection time delay
- Instantaneous
- Ambient air temperature for operation
- -5…60 °C
- [Uimp] rated impulse withstand voltage
- 6 kV
- Rated conditional short-circuit current
- 10 kA
