541181

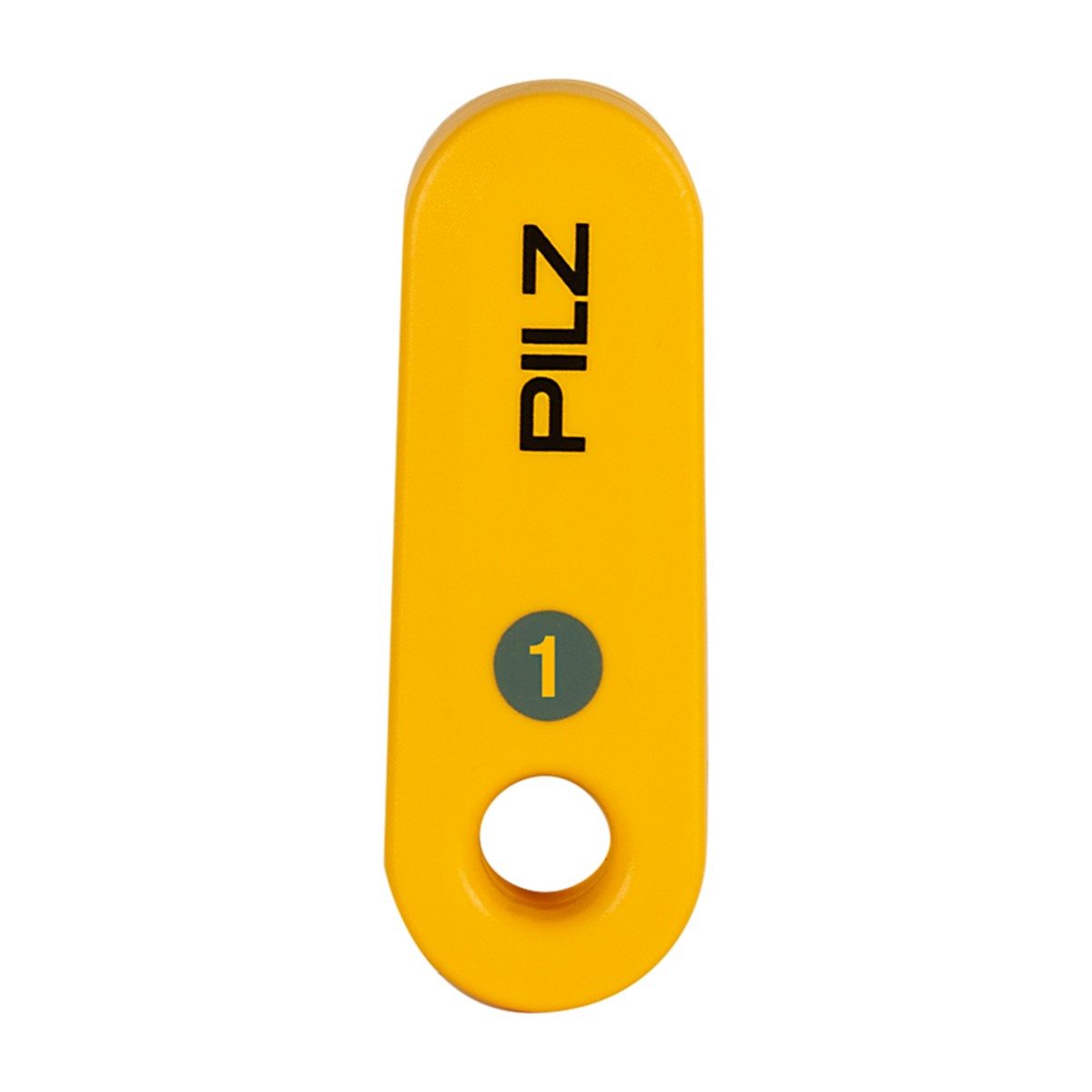

Pilz 541181 PSEN cs4.1 Key gy1. Pilz 541181 (PSEN cs4.1 Key gy1) is an exact PSENcode machine-safety catalogue item verified against its dedicated Pilz E-Shop detail page. Pilz's model-specific description is: Transponder key for PSEN cs4.1p, grey "1" marking, material: plastic, accessories: key adapter (532113). The detail-page technical table records Sensor principle: Transponder; Coding level to ISO 14119: hoch; Protection type, housing: IP68; Ambient temperature: -10; Height dimension: 15.1; Width dimension: 42; Depth dimension: 8. This order code is tied to GTIN 4046548096668 and the official technical asset titled 'Operat. Man. PSEN cs3.1p Key'. Similar Pilz variants can differ in contact arrangement, coding, connector, cable, actuator package, sensing distance and enclosure protection, so use the exact product ID and GTIN in RFQs. Availability, price and lead time require a current supplier quotation.
Details
- Brand: Pilz
- Part number: 541181
- Series: PSENcode
- Category: Safety Switch
Related Pilz parts
- PSEN cs4.1p / PSEN cs4.1 1unit
- PSEN cs4.1n / PSEN cs4.1 1 Unit
- PSEN cs2.1p 1 switch
- PSEN cs3.19n / PSEN cs3.19 1 switch / 3 actuators
- PSEN cs1.1n 1switch
- PSEN cs1.1 1 actuator
- PSEN cs2.1p / PSEN cs2.1 1Unit
- PSEN cs1.1p / PSEN cs1.1 1 Unit
- PSEN cs1.1p 1 switch
- PSEN cs1.13p / PSEN cs1.1 / ATEX 1 Unit
- PSEN cs2.13p / PSEN cs2.1 / ATEX
- PSEN cs2.2p / PSEN cs2.1 1 Unit
Specifications
- GTIN
- 4046548096668
- Volume
- 0 dm3
- Approval
- CE UKCA cULus Listed FCC IC TÜV EAC (Eurasian)
- UNSPSC 25
- 39122205
- unit type
- Betätiger
- Net weight
- 5
- ETIM Version
- ETIM-9.0
- Gross weight
- 6
- ECLASS version
- ECLASS-13
- Product family
- PSENcode
- Depth dimension
- 8
- Humidity rating
- 93 % r. F. bei 40 °C
- Pilz product ID
- 541181
- Width dimension
- 42
- Height dimension
- 15.1
- Sensor principle
- Transponder
- Transponder coding
- vollcodiert
- Ambient temperature
- -10
- EMC to standard ...
- EN 60947-5-3
- Operating frequency
- 122 kHz - 128 kHz
- ETIM Reference Group
- EG000026
- Official product page
- https://www.pilz.com/en-INT/eshop/Sensor-technology/Safety-switches/PSENcode-non-contact-coded-safety-switches/PSENcode-key/PSEN-cs4-1-Key-gy1/p/541181
- Type of tariff number
- TARIC
- ETIM Reference Feature
- EC002997
- Harmonized System Code
- 85389099
- Acc. shock to standard1
- 30g
- ECLASS Reference Feature
- 27274692
- Protection type, housing
- IP68
- Coding level to ISO 14119
- hoch
- Official catalogue branch
- PSENcode-compact
- Vibration to standard ...
- EN 60947-5-2
- Perm. operating height ASL
- 4000 m
- Housing material upper part
- PBT
- Quantity per packaging unit
- 1
- Ambient temperature standard
- EN 60068-2-14
- Max. ambient temp. at 2000 m
- +55 °C
- Storage temperature standard
- EN 60068-2-1/-2
- Use of customs tariff number
- Ausfuhr Einfuhr
- Climatic suitability standard
- EN 60068-2-78
- WEEE classification (08/2018)
- 5 devices (feed size < 50cm)
