E2M231

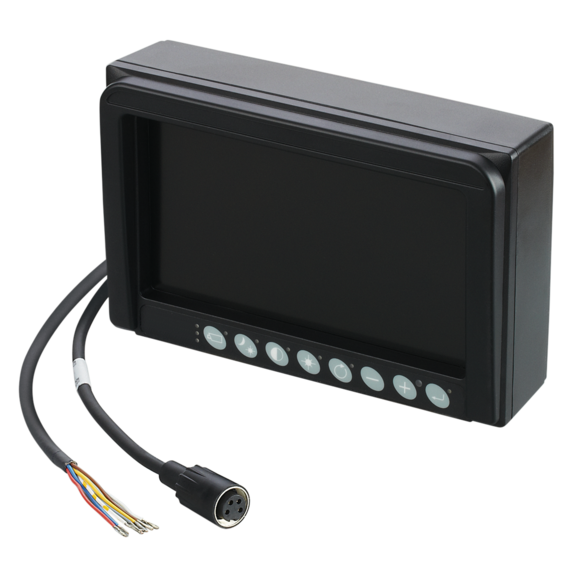

IFM E2M231 monitor with one analog video input. IFM lists these product characteristics: The parameters of the device are set via the integrated keys, For processing input signals from analog cameras.
Details
- Brand: IFM
- Part number: E2M231
- Series: E2
- Category: Industrial connection technology
Related IFM parts
- monitor with two analog video inputs
- Video Switcher
- Mounting set
- Mounting set for illumination unit
- Mounting set for illumination unit
- Reflective tape
- Mounting set for illumination unit
- Mounting set for illumination unit
- Mounting set for illumination unit
- Mounting set for laser distance sensors
- Mounting set for illumination unit
- Mounting set for illumination unit
Specifications
- Cable
- 2 m
- Remarks
- observe the voltage range on the type label; older versions of the device have a voltage range of 18...30 VDC (revision no. AA)
- Material
- housing: ABS black; fixture: aluminum black
- Connector
- 1 x M16; coding: A; Contacts: 4
- Protection
- IP 67
- Weight [g]
- 1022.5
- Application
- Monitor for up to 1 O2M2xx / O3M2xx camera
- Video input
- 1 Vtt, 75 Ω, PAL 50 Hz, 4,43 MHz color sub carr
- Display size
- 7"
- Display type
- Color display
- Pack quantity
- 1 pcs.
- IFM product code
- E2M231
- Shelf life [MON]
- 24
- Shock resistance
- 15,3 G(rms) Frequency range 24...2000 Hz; PSD 0,04...0,10 g²/Hz
- Storage humidity [%]
- < 75; (relative humidity)
- Operating voltage [V]
- 12...32 DC; (± 10%)
- Overvoltage protection
- yes
- Ambient temperature [°C]
- -40...85
- Storage temperature [°C]
- -40...125
- Power supply for camera [mA]
- 2000; (± 10%)
