1756-OF8I

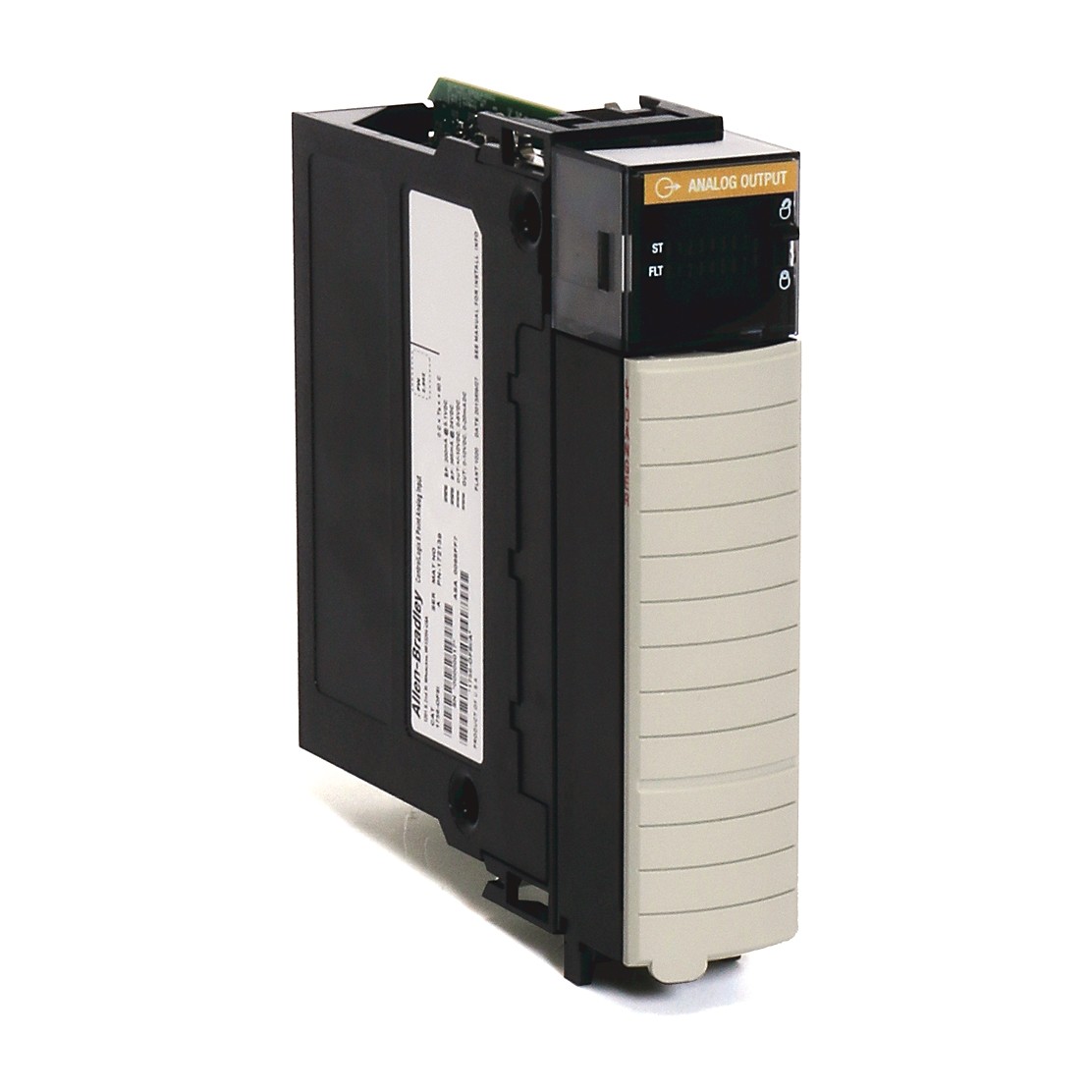

Allen-Bradley 1756-OF8I ControlLogix 8 Point Analog Output. Analogue inputs configurable: true; Analogue outputs configurable: false; Display: Module Health, In Calibration,Mode, Input, Fault and,Communication Status.
Details
- Brand: Allen-Bradley
- Part number: 1756-OF8I
- Series: ControlLogix
- Category: ControlLogix System
More Allen-Bradley ControlLogix parts
- Allen-Bradley 1756-IA16K ControlLogix 16 Point Digital Input
- Allen-Bradley 1756-IB32K ControlLogix 32 Point Digital Input
- Allen-Bradley 1756-OB16IEF ControlLogix 16 Point Digital Output
- Allen-Bradley 1756-OB16IEFS ControlLogix 16 Point Digital Output
- Allen-Bradley 1756-IB16IK ControlLogix 16 Pt 12/24V DC D/I Module
- Allen-Bradley 1756-IV16K ControlLogix 16 Pt 12/24V DC D/I Module
- Allen-Bradley 1756-OB16IK ControlLogix 16 Point D/O Module
- Allen-Bradley 1756-OX8I ControlLogix 8 Pt Digital Relay Module
- Allen-Bradley 1756-IA32K ControlLogix 32 Pt D/I 120V AC Module
- Allen-Bradley 1756-OW16IK ControlLogix 16 Point Digital Output Rel
- Allen-Bradley 1756-IB16D ControlLogix 16 Point D/I Module
- Allen-Bradley 1756-IB16DK ControlLogix 16 Point D/I Module
Specifications
- Display
- Module Health, In Calibration,Mode, Input, Fault and,Communication Status
- Isolation
- 250V (continuous), reinforced,insulation type, outputs to,backplane. 250V (continuous),basic insulation type, output,to output
- Current draw
- 200mA @ 5.1V, Voltage or current mode with 250 Ω loads = 220mA @ 24V, Current mode with 500 Ω loads = 275mA @ 24V, Current mode with 750 Ω loads = 340mA @ 24V, Current mode with 1000 Ω loads = 385mA @ 24V
- Manufacturer
- Rockwell Automation / Allen-Bradley
- Catalog Number
- 1756-of8i
- Special Features
- Per Point Isolation
- Calibrated accuracy
- 0.05% @ 25°C (77 °F)
- Conducted RF immunity
- 10V rms with 1 kHz sine-wave 80% AM from 150 kHz...80 MHz
- Official Product Name
- ControlLogix 8 Point Analog Output
- Build America, Buy America
- Yes
- Analogue inputs configurable
- true
- Analogue outputs configurable
- false
